Introduction

In today's rapidly changing business landscape, digital transformation has become a necessity for companies to remain competitive and relevant. This is particularly true for retail and catering industry, which face growing pressure to adapt to the evolving needs of consumers and the increasing demands of a digital economy.

Membership Points Auto-Earn Solution is a comprehensive digital transformation solution designed to help commercial areas address these challenges and optimize their operations. Through advanced technologies and innovative strategies, the solution enables businesses to streamline their processes, enhance customer experiences, and unlock new revenue streams.

This document provides an overview of Membership Points Auto-Earn Solution , including its key features, user flows, and integration guideline. It is intended for merchants or ISVs who are looking for ways to drive digital transformation and stay ahead in today's competitive market.

As part of the broader initiative to digitize the retail ecosystem, our current focus is on the implementation of a membership program. By digitizing the membership experience, we aim to improve customer engagement, loyalty, and satisfaction, while also enabling loyalty program operators to collect and analyze valuable data to optimize their operations. Through the use of advanced technologies such as mobile apps and AlipayHK payment solutions , we will ensure that the membership program is convenient, secure, and user-friendly.

User Experience

We anticipate that AlipayHK users will automatically receive merchant's membership points upon successful payment at designated merchants without the need for additional actions such as uploading receipts, scan membership QR Code, etc. To enable this feature for users, the following requirements must be met:

1. Payment must be made using the AlipayHK APP
2. User must have authorized AlipayHK to share transaction information with the designated shopping malls or merchants
3. The designated merchants must have an AlipayHK mini-app or Brand Channel

AlipayHK provides two approach for implementing this solution

2.1 via Brand Channel

Step 1: User login to to the Merchant's Brand Channel Page

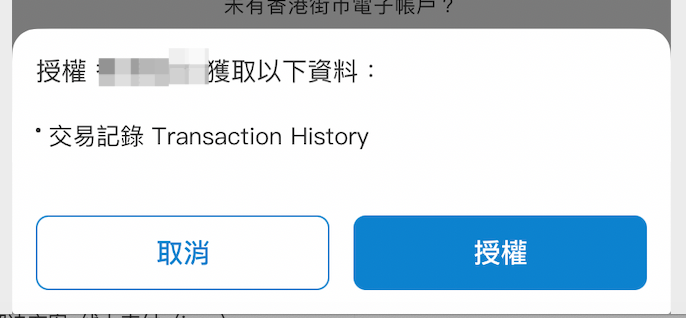

Step 2: Confirm the authorization

Step 3: Payment with AlipayHK

Step 4: The Merchant's points updated automatically and user get the push notification

2.2 via Mini-APP

2.2.1 Auto Upload

User needs to login to Merchant’s or Shopping Mall‘s mini-app to authorize first.

Step 1: User login to Merchant's mini-app to authorize

Step 2: Payment with AlipayHK

Step 3: The Merchant's points updated automatically and user get the push notification

2.2.2 Manual Upload

User needs to login to Merchant’s or Shopping Mall‘s mini-app and then select the transactions to submit manually.

Step 1: User login to Merchant's mini-app to authorize

Step 2: Payment with AlipayHK

Step 3: User login to Merchant's mini-app

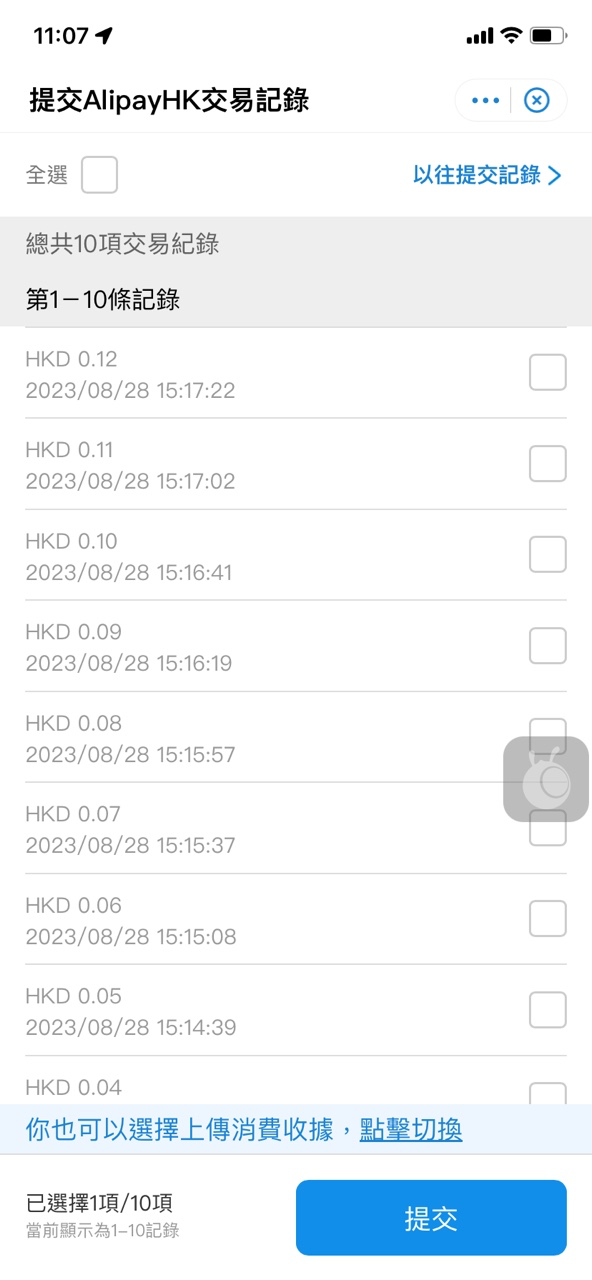

Step 4: Select the transactions and submit for membership points calculation

System Flow

3.1 via Brand Channel

If you want to adopt this feature via brand channel, you could refer the general system flow below. You may need to design the flow based on your own system requirement

3.2 via Mini-APP

3.2.1 Auto Upload

If you want to adopt this feature via mini-app, you could refer the general system flow below. You may need to design the flow based on your own system requirement.

3.2.2 Manual Upload

If you want to adopt this feature via mini-app, you could refer the general system flow below. You may need to design the flow based on your own system requirement.

Quick Integration

4.1 Preparation

HK Site Merchant ID and End Point

Merchant needs to complete the on-boarding progress to get a Merchant ID from AlipayHK side.

The merchant id should start with 2160. Please contact your BD/SA for initial information setup. Please include below information

- Endpoint for different environment ( Production and non-Production)

- Public key for different environment ( Production and non-Production)

After configuration complete, AlipayHK will reply with the clientID and AlipayHK public id.

The clientID will be used for API calling

PMS Information

PMS information is a must for Implementing this solution

If merchant can't provide the PMS, we provide approach for collecting the PMS ID.

a. Collect them via an identifier code.

please contact your BD/SA to get a PMS identifier code.

b. Collect them via API

please check the API imformation in below sessions

Membership Card Template

Membership card template needs to be provided if you wants your membership card display in AlipayHK APP

Please fill in the template information and send to your BD for template creation📎{Merchant_Name}Membership_Template.xlsx

If more user information is needed during account creation, please also provide below information

📎MembershipCardCreation_Supplementary_v1.0.xlsx

4.2 API fundamentals

This section presents general information (such as message structure, message fields, and message transmission) of online messages between your system and Alipay. A message refers to the request message or the response message.

Request message structure

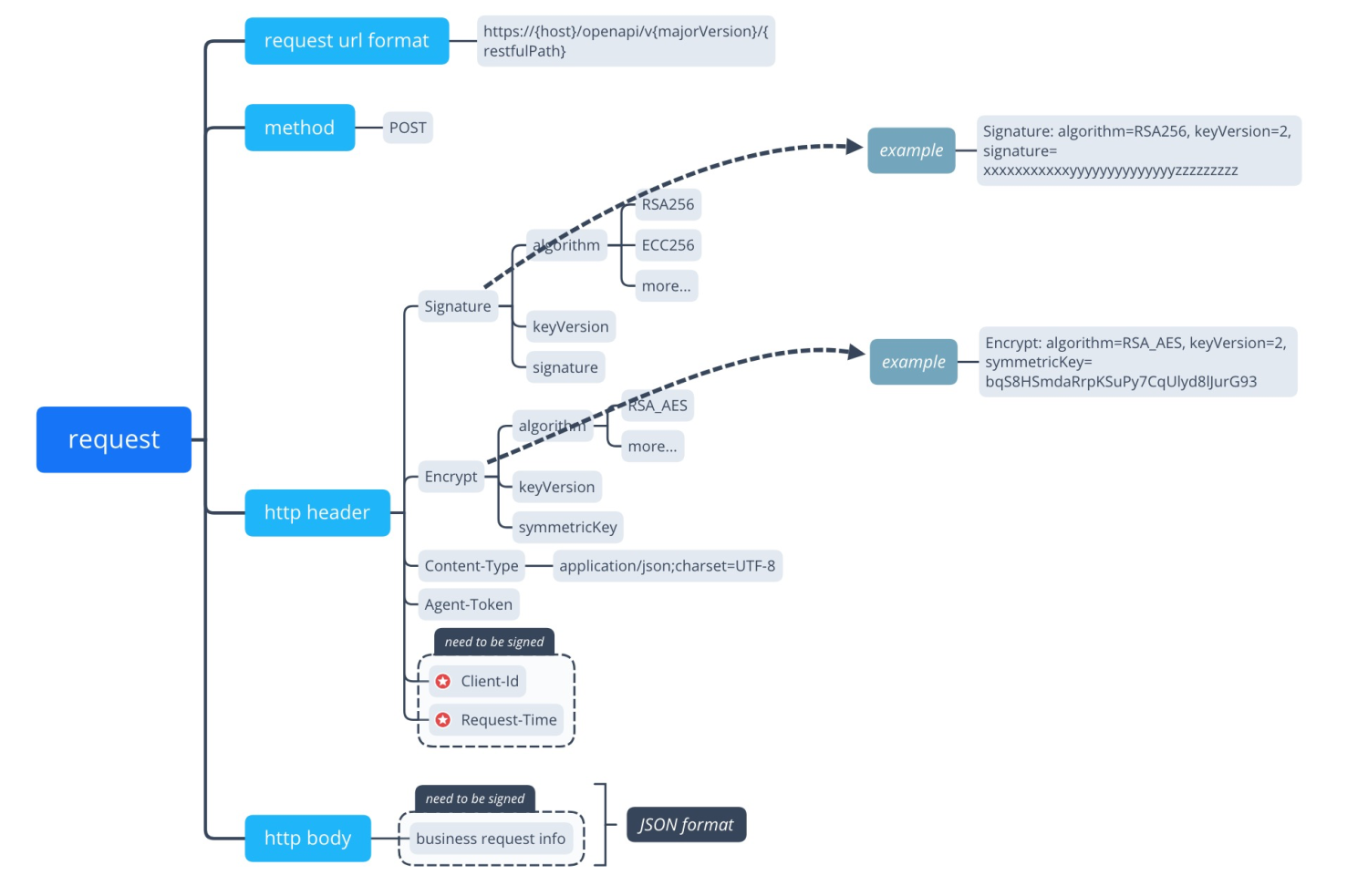

The following figures illustrate the request message structure:

Request URL

The request URL is: https://{host}/openapi/v{majorVersion}/{restfulPath}

where,

host is the standard domain name assigned by Alipay.

restfulPath is the path to the interface.

An interface can be uniquely identified by restfulPath and majorVersion.

Request method

POST method is used to make an HTTP request.

Request header

The request header mainly contains fields such as Client-Id, Signature, Encrypt, Content-Type, Request-Time, and Agent-Token.

Client-Id Required

Client-Id is used to identify a client, and is associated with the keys that are used for signature and encryption. It is assigned by AlipayHK.

Signature Required

Signature contains key-value pairs that are separated by comma (,). Each key-value pair is an equation, which is a key joined with its value with an equal sign (=).

The following keys can be configured:

• algorithm: Specifies the digital signature algorithm that is used to generate the signature. The value is not case-sensitive. RSA256 and ECC224 are supported, and RSA256 by default.
• keyVersion: Specifies the key version that is used to generate or validate the signature. By default, the value is the latest version of the key associated with Client-Id.
• signature: Contains the signature value of the request.

For example:

signature: algorithm=RSA256, keyVersion=1,
signature=KEhXthj4bJ801Hqw8kaLvEKc0Rii8KsNUazw7kZgjxyGSPuOZ48058UVJUkkR21iD9JkHBGR
rWiHPae8ZRPuBagh2H3qu7fxY5GxVDWayJUhUYkr9m%2FOW4UQVmXaQ9yn%2Fw2dCtzwAW0htPHYrKMyrT
pMk%2BfDDmRflA%2FAMJhQ71yeyhufIA2PCJV8%2FCMOa46303A0WHhH0YPJ9%2FI0UeLVMWlJ1XcBo3Jr
bRFvcowQwt0lP1XkoPmSLGpBevDE8%2FQ9WnxjPNDfrHnKgV2fp0hpMKVXNM%2BrLHNyMv3MkHg9iTMOD%
2FFYDAwSd%2B6%2FEOFo9UbdlKcmodJwjKlQoxZZIzmF8w%3D%3D

Encrypt Conditional

This field is required when a message need to be encrypted. Encrypt contains key-value pairs that are separated by comma (,). Each key-value pair is an equation, which is a key joined with its value with an equal sign (=).

The following keys can be configured:

• algorithm: Specifies the symmetric key algorithm that is used to encrypt message. The value is not case-sensitive, and currently only RSA_AES is supported.

• keyVersion: Specifies the symmetric key version that is used to encrypt message. By default, the value is the latest version of the key associated with clientId.

• symmetricKey: Contains the encrypted symmetric key.

For example:

Encrypt: algorithm=RSA, keyVersion=1,
symmetricKey=bqS8HSmdaRrpKSuPy7CqUlyd8lJurG93

Content-Type Required

Optional. Content-Type indicates the media type of the body of the request, as defined by RFC2616. In which, charset is used for generating/validating the signature and encrypting/decrypting content.

For example：

Content-Type: application/json; charset=UTF-8

Request-Time Required

Specifies the time when the request is sent, as defined by RFC3339. Note: This field must be accurate to milliseconds.

Request-Time: 2019-04-04T12:08:56.253+05:30

Agent-Token Optional

An agent can obtain the token from Alipay, and then use this client authorized token to interact with Alipay.

Request body

The request body contains the detailed request information in a JSON format. Fields enclosed in the request body section vary depending on services. For more information, see instructions of the specific message interface.

Response message structure

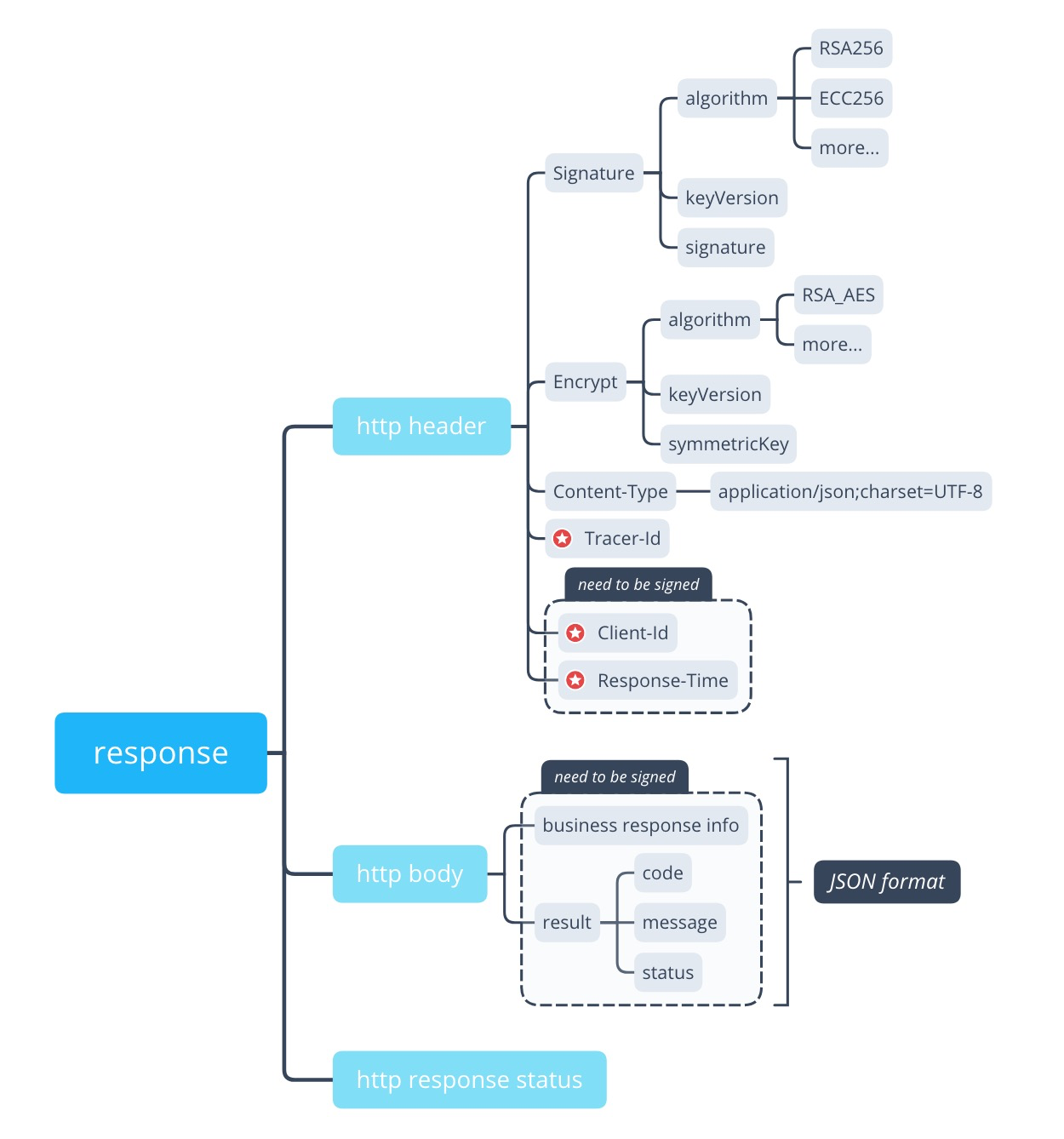

The following figures illustrate the response structure:

Figure 2. Response structure

Response header

Response header carries additional information about the response, such as the signature and the encryption. Most fields in the response header are the same as that of the request header, except:

Response-Time Required

Specifies the time when the response is sent, as defined by RFC3339.

Response body

Response body contains the information responding to the client. Fields in this section vary depending on services. However, the result parameter, which indicates the result of an interface call, is always contained.

Message fields

Read the following chapter for general information of message fields, such as data type, common data structure, and processing rules of special characters.

Data type

This following table describes the data types supported by Alipay.

Processing rules of special characters

The following rules are about how to process special characters enclosed in the message.

base64

For byte data, such as the signature and the encrypted content, encode the data with the base64 algorithm before transmitting.

urlencode

For URL data, perform URL encoding first before transmitting. For example:

Original URL: https://www.merchant.com/authorizationResult

Converted URL: https%3A%2F%2Fwww.merchant.com%2FauthorizationResult

4.3 Digital signature

To guarantee that data have not been altered in transmission, digital signature and encryption mechanism can be adopted. For all messages, the digital signature is mandatory. In addition, data encryption is required if sensitive information is enclosed in the message. For more details about encryption, see Encryption.

The signature algorithm used for data transmission is RSA 256. You can use RSA256 for creating or validating signatures. When creating a signature, calculate a sha256 digest first, and then encrypt the digest by using RSA algorithm. The recommended RSA key size is 2048 bits.

Generating an RSA key pair

RSA key pair

An RSA key pair contains the private key and the public key. The private key is required for generating the signature, while the public key is used for verifying the signature.

Generating an RSA key pair

Many tools can be used to generate the RSA key pair. The following steps assume that you use OpenSSL to generate the RSA key pair.

1.Install OpenSSL.

For linux system, use the following command:

sudo apt-get install openssl

For windows system, download and then install OpenSSL from the official site

2.Generate RSA2 key pair.

For linux system, use the following command:

$ openssl

OpenSSL> genrsa -out rsa_private_key.pem 2048 ##generate private key

OpenSSL> pkcs8 -topk8 -inform PEM -in rsa_private_key.pem -outform PEM - nocrypt ##transform private key into PKCS8 format

OpenSSL> rsa -in rsa_private_key.pem -pubout -out rsa_public_key.pem

##Generate public key

OpenSSL> exit

Uploading RSA public key

After the RSA2 key pair is generated, you must exchange the public key with the AlipayHK server for signature verification by completing the following steps:

1. Upload your public key to AlipayHK
2. Obatin AlipayHK public key

Creating a signature

See the following figure for an overview of the signature creation process:

Complete the following steps to create a signature:

1. Obtain the private key.

2. Create the string to sign. The string to be signed is:

<HTTP Method> <HTTP-URI-with-query-string>
<Client-Id>.<Request-Time|Response-Time>.<HTTP body>

3. Generate the signature. Use the algorithm and private key obtained in step1 to generate the signature. The following example assumes that RSA256 algorithm is used to generate the signature:

signature=base64UrlEncode(sha256withrsa(string-to-sign))

Demo code:

/**
     *
     * @param requestURI // domain part excluded, sample: /ams/api/v1/payments/pay
     * @param clientId
     * @param requestTime
     * @param privateKey
     * @param requestBody
     * @return
     */
    public static String sign(String requestURI, String clientId, String requestTime,
                              String privateKey, String requestBody) {

        String content = String.format("POST %s\n%s.%s.%s", requestURI, clientId, requestTime,
            requestBody);

        try {
            java.security.Signature signature = java.security.Signature
                .getInstance("SHA256withRSA");

            PrivateKey priKey = KeyFactory.getInstance("RSA").generatePrivate(
                new PKCS8EncodedKeySpec(Base64.decodeBase64(privateKey.getBytes("UTF-8"))));

            signature.initSign(priKey);
            signature.update(content.getBytes("UTF-8"));

            byte[] signed = signature.sign();

            return URLEncoder.encode(new String(Base64.encodeBase64(signed), "UTF-8"), "UTF-8");
        } catch (Exception e) {
            throw new RuntimeException(e);
        }
    }

4. Add the signature to header. Assemble the signature algorithm, the key version used for the signature, and the signature into Signature header. The following example shows a finished Signature header:

key: Signature ；
value：algorithm=<algorithm>，keyVersion=<key-version>，signature=<signature>

Validating a signature

See the following figure for an overview of the signature validation process:

The signature verification process consists of the following steps:

1. Obtain the public key, obtain Client-Id and algorithm from header.

2. Create the string to sign. The string to be signed is:

<HTTP Method> <HTTP-URI-with-query-string>
<Client-Id>.<Request-Time|Response-Time>.<HTTP body>

3. Use the algorithm obtained in step 1 to calculate a digest of the string you created in step 2. Then, decrypt the signature by using the public key to get a digest. Compare two digests, if the digests match the signature is verified. For example, assume RSA256 algorithm is used, base64url decode the signature content to obtain the original signature, and then validate the signature by using the sender’s public key and sha256withrsa algorithm.

sha256withrsa_verify(base64UrlDecode(<signature>), <content_to_be_verified>, <serverPublicKey>)

Demo code:

/**
     *
     * @param requestURI // domain part excluded, sample: /ams/api/v1/payments/pay
     * @param clientId
     * @param reponseTime
     * @param alipayPublicKey
     * @param responseBody
     * @param signatureToBeVerified
     * @return
     */
    public static boolean verify(String requestURI, String clientId, String reponseTime,
                                 String alipayPublicKey, String responseBody,
                                 String signatureToBeVerified) {

        //signatureToBeVerified would not be present in the response when AMS returns a SIGNATURE_INVALID
        if (StringUtil.isBlank(signatureToBeVerified)) {
            return false;
        }

        String content = String.format("POST %s\n%s.%s.%s", requestURI, clientId, reponseTime,
            responseBody);

        try {
            java.security.Signature signature = java.security.Signature
                .getInstance("SHA256withRSA");

            PublicKey pubKey = KeyFactory.getInstance("RSA").generatePublic(
                new X509EncodedKeySpec(Base64.decodeBase64(alipayPublicKey.getBytes("UTF-8"))));

            signature.initVerify(pubKey);
            signature.update(content.getBytes("UTF-8"));

            return signature.verify(Base64.decodeBase64(URLDecoder.decode(signatureToBeVerified,
                "UTF-8").getBytes("UTF-8")));

        } catch (Exception e) {
            throw new RuntimeException(e);
        }

    }

4.4 SDK Download

To make the integration process easier, we recommend you to use our SDK.

You can get the SDK from below Git repository

JAVA：https://github.com/alipay/global-open-sdk-java

PHP：https://github.com/alipay/global-open-sdk-php

Python：https://github.com/alipay/global-open-sdk-python

4.5 Implementing error handling

4.5.1 Idempotence

Idempotence means that in response to the same requests sent multiple times, AlipayHK will send back only one unique result.

To create a membership card: AlipayHK checks the idempotence by using merchantId, templateCode and bizSerialId. If existing record is found, errors will be returned.

To update a membership card: AlipayHK checks the idempotence by using merchantId, templateCode and passId. If existing record is found, errors will be returned.

4.5.2 Timeout or system error

Because HTTPS requests depend on network stabilities, timeout might occur on interface requests. At the same time, AlipayHK might return SYSTEM_ERROR for internal system problems. In both cases, partners can retry to get aligned with the final pass status.

Best Practice

1. Prevent calculating points duplicately

Besides of AlipayHK, we believe merchant will calculate membership points via other channels such as merchant's own APP, onsite customer service center, etc. To avoid calculating duplicately, we suggest Ordering system or CRM to verify the transactions before adding the points based on transaction no.

AlipayHK suggested de-duplicated logic

2. Make the points updated timely

To bring the best customer experience, we will suggest merchant update the Points once received the transaction record from AlipayHK side. Technically, the /updatePass API should be called after received the API /notify call from AlipayHK side. Understand that some CRM/OMS system may update the point by batch, we strongly recommend CRM/OMS could implement realtime points update. Alternatively, could split into two sperate logic, one for real-time and one for batch update

3. Make the user login smoothly (for mini-app solution)

To bring the best customer experience, we will suggest merhcant adopting our SSO solution. Hence user doesn't need to login again when re-enter the mini-app

For more details about the SSO, please check the details here

4. Adopt proper retry mechanism

As the system can't be 100% stable and response to the API call timely everytime, merchant could consider to adopt proper retry mechanism to increate the robust of the overal system design. Merchant could use below interval and frequency.

1st time: 01:00:00 - initial request

2nd time: 01:00:02 - after ard 2s

3rd time: 01:00:04 - after ard 2s

4th time: 01:00:06 - after ard 2s

5th time: 01:10:06 - after ard 10mins

6th time: 01:40:06 - after ard 30mins

5. Response to AlipayHK's API timely

To bring the best user experience, our front-end has 3s timeout rules, which means if our system doesn't receive response within 3s, the APP will then display error message to user. Hence we will suggest Merchant‘s system should response to AlipayHK's API call within 3s, better 2s.

API List

Below are the overview of all the APIs might be used. You can choose the APIs depends on your own requirement. There are also some APIs need to be developed by merchant side.

6.1 via Brand Channel

6.2 via Mini-App

6.2.1 Auto Upload

6.2.1 Manual Upload

API Details

Create Merchant’s Membership Card

Send User Transaction Record

Create AlipayHK Membership Card

Could refer to general createPass API

https://docs.alipay.hk/alipayhkdocs/hk/gcmc/create_giftmem

Or below specs specifically for auto-earn points scenario

Update AlipayHK Membership Card

Could refer to general createPass API

https://docs.alipay.hk/alipayhkdocs/hk/gcmc/update_giftmember

Or below specs specifically for auto-earn points scenario

Query User Transaction Record

Collect PMS Information

Query PMS Collection Result

Testing Environment
